LED Exposure Units

Efficient, long lasting, stable LED exposure Units

Pad Print UK have replaced the old UV technology with new efficient long lasting and stable LED light emission technology. The units are equipped with digital timers and high performance vacuum pump and frame giving excellent contact of film on plate for crisp sharp exposure and etching of the print plates.

Both units are manufactured and conform to current UK CA regulations and supplied with compliant certification.

Key Features

• Less energy consumption
• Longer work life of the lights (now +- 10.000 hours)
• Quick start (less than 1 second)
• Maintenance free

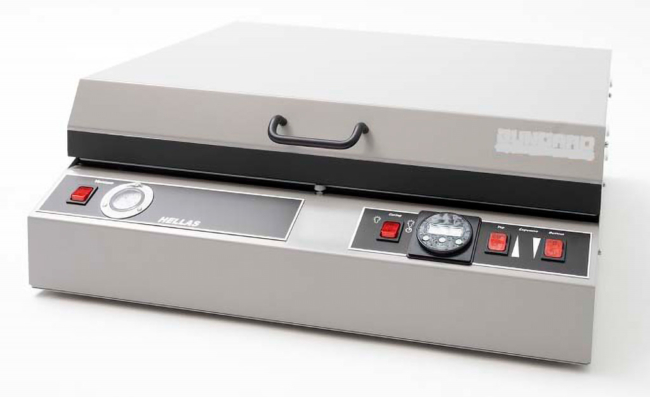

Technical Data for Large Unit

Dimensions (LxWxH): 680 x 650 x 240 mm
Weight: approx. 45 kg
Power supply: 230 V/50 Hz, approx. 200 W
Max. Exposure area: approx. 570 x 300 mm
Number of LEDs: 84 pc

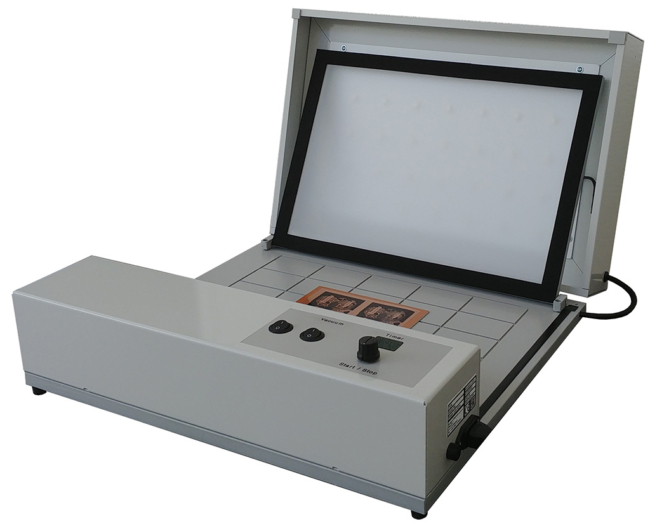

Technical Data for Small Unit

Dimensions (LxWxH): 480 x 454 x 130 mm
Weight: approx. 13 kg
Power supply: 108-230 V/50 Hz, approx. 45 W
Exposure area: approx. 230 x 360 mm
Number of LEDs: 35 pcs
